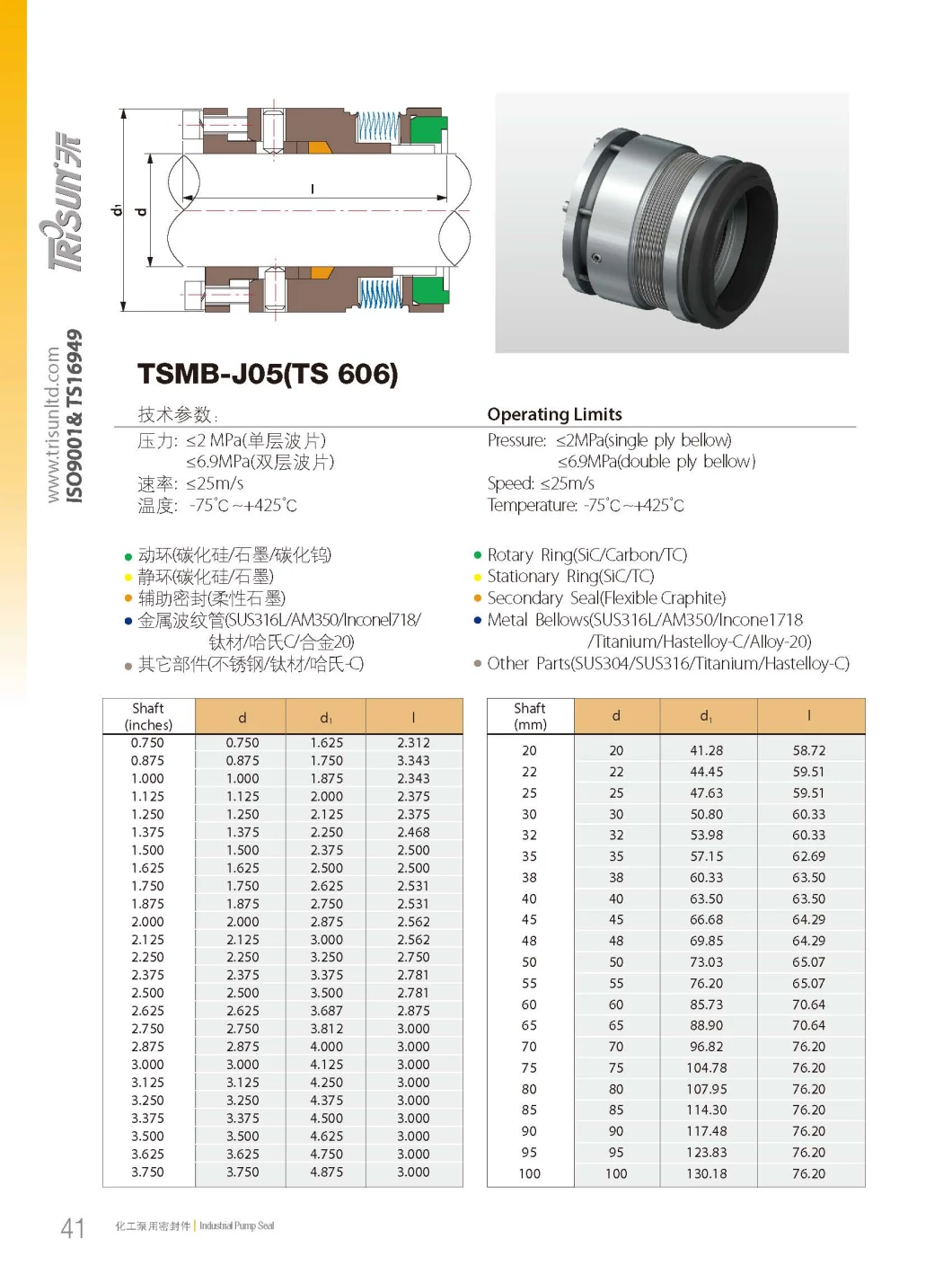

TSMB-J05 Metal Bellows Seal(replace John crane 606 )

Operating Limits:
Pressure: ≤2MPa (single ply bellow)
≤6.9MPa (double ply bellow)
Speed: ≤25m/s
Temperature: -75ºC~+425ºC

Rotary Ring (SiC/Carbon/TC)
Stationary Ring (SiC/TC)
Secondary Seal (Flexible Carbon)
Metal Bellows (SUS316L/AM350/Incone1718/Titanium/Hastelloy-C/AIIoy-20)
Other Parts (SUS304/SUS316/Titanium/Hastelloy-C)
