High temperature and corrosion resistant PTFE tape for seal line isolation

PTFE film--PTFE skived filmPTFE resin is first molded into work-blank and then skived. The PTFE resin skived sheet & tape are highly dielectric. Chemical resistant and not aging. They have a wide range of operation temperature.Specs:width((mm)thickness(mm)length(m)film type10~1200.02~230~300oriented/ semi-oriented/ non-orien

Featured Products

PTFE film--PTFE skived film

PTFE resin is first molded into work-blank and then skived. The PTFE resin skived sheet & tape are highly dielectric. Chemical resistant and not aging. They have a wide range of operation temperature.

Specs:
width((mm)thickness(mm)length(m)film type
10~1200.02~230~300oriented/ semi-oriented/ non-oriented
300~12000.02~0.0830~300

Main properties:
PropertyUnitOrientedSemi-orientedNon-oriented
Tensile strengthMPa≥30≥20≥10
Elongation at rupture%≥30≥60≥100
1MHZ dielectric loss tengent-2.5×10-4--
1MHZ dielectric constant-average value 1.8-2.2--
Dc breakdown voltage (normal temperature)KV/M

average value 200

minimum value 40

                     average value 60

minimum value 6

average value 30

Uses
Lining, seaing and oil less lubricating material and dielectric at any frequencies. Capacitor dielectric, wire isolation, electrical instrument isolation

High Temperature Resistant Corrosion Resistant PTFE Tape for Seals Wire Isolation
High Temperature Resistant Corrosion Resistant PTFE Tape for Seals Wire Isolation
High Temperature Resistant Corrosion Resistant PTFE Tape for Seals Wire Isolation
High Temperature Resistant Corrosion Resistant PTFE Tape for Seals Wire Isolation
High Temperature Resistant Corrosion Resistant PTFE Tape for Seals Wire Isolation

Data sheet of fluoropolymer products
High Temperature Resistant Corrosion Resistant PTFE Tape for Seals Wire Isolation

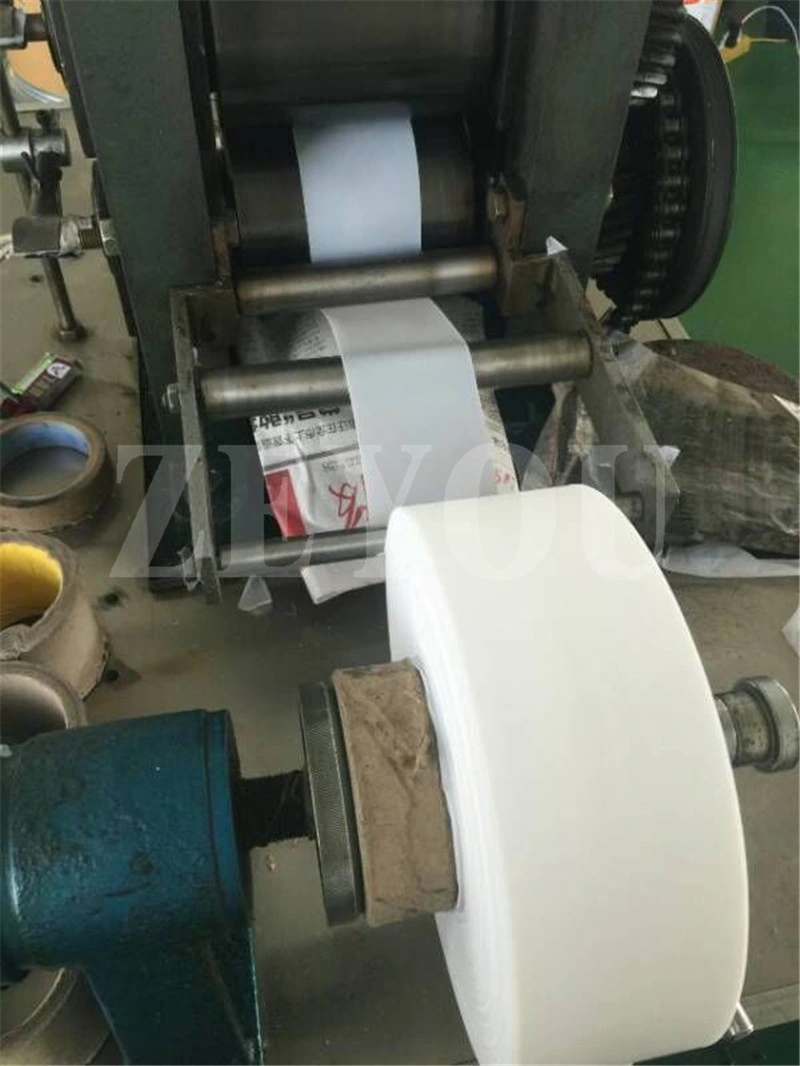

Factory environment
High Temperature Resistant Corrosion Resistant PTFE Tape for Seals Wire Isolation
High Temperature Resistant Corrosion Resistant PTFE Tape for Seals Wire Isolation



About us

Zeyou Fluoroplastic Material Technology Co., Ltd is located in Kunshan city, very close to Shanghai. We specialize in D&R and manufacturing fluoropolymer products: release film,welding film,coiled tube,convoluted tubing,insulated flexible tubing,eptfe filtration membrane,welding rod,sheet/rod,tubing fitting,etc.. made from 100% virgin FEP/PFA/PTFE/EPTFE/PVDF/ETFE.

We are very expert in fluoroplastics field and committed to developing and supplying the cost efficient, high quality fluoropolymer products. And for regular specifications, we have lots of stocks, for odd specs, it could be customized, since we have advanced production and test equipments, expert technical engineers and skilled workers.

Main Products:

1) FEP,F46 transparent tube, insulation tube, heat shrink tube,coil pipe,liner tube, bellows, painting tube, sheet,        rod, film, welding rod;

2) PFA transparent tube, insulation tube, heat shrink tube, coil pipe, liner tube, bellows, painting  tube, sheet, rod,      film, welding rod, connector , tee,elbow,winding pipe ;

3) Microporous PTFE membrane:air filtration membrane and water filtration membrane;

4) PTFE,F4 tube, liner tube, high pressure stainless steel braid hose, bellows, painting tube, sheet, rod, film,            winding pipe ;

5) PVDF, F26 tube, connector, tee;

6) ETFE film for solar module, LED packaging, semiconductor and aircraft.

For all the fluorine plastic products, we can accpet customized in special size.

Characteristic:

Excellent resistance to high and low temperature, it can be used in -80~+260ºC for a long time, resistance to climatic againg, fireproof, high oxygen index, non-absorbency, excellent resistance to radiation, such as long-term exposure in the atmosphere, the surface and various performance remind unchanged: Excellent dielectric perfomance, high voltage resistance: Excellent corrosion resistance , almost insoluble

Welcome to visit or contact us to have a communication and discussion of fluoropolymer products, and we will offer the best solution for you.
